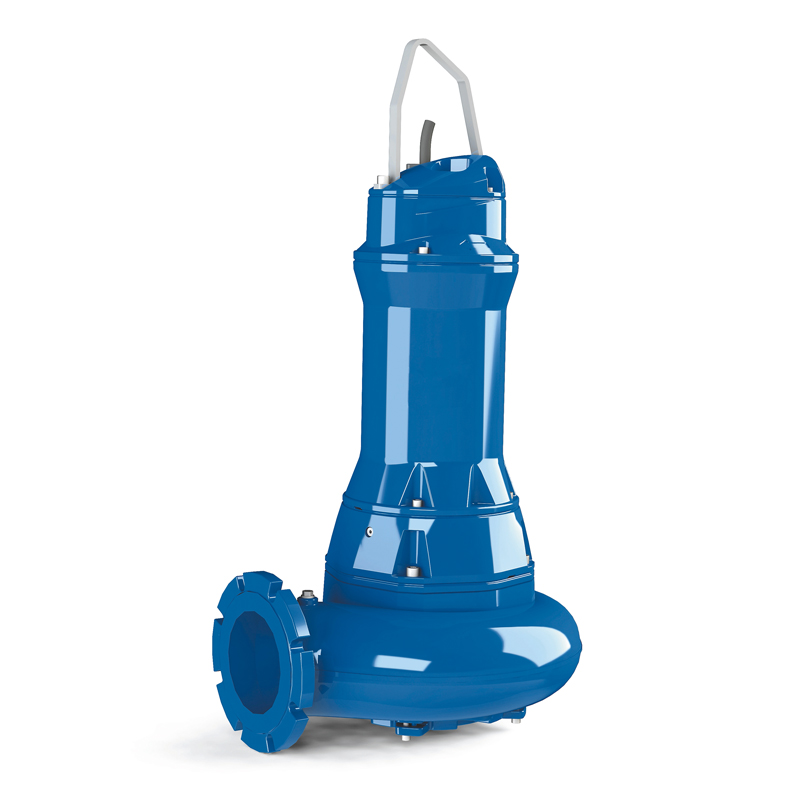

XFP150G Electric Submersible Wastewater Pumps

XFP150G-CB1.3 Click image to Zoom

The XFP150G is a medium-sized 6” electric submersible wastewater pump designed to provide clients with a robust solids handling solution and is capable of operating at heads of up to 27 metres. Delivering a maximum flow of 94 litres per second, the pump has been manufactured for use in a broad spectrum of environments that typically include municipal and utility applications. Each unit is fitted with a 20m cable enabling flexible installation, with an automatic control feature ensuring it will only operate when required.

+971 (0) 55 104 8270 Get A Quote

Get A Quote

The XFP150G is a medium-sized 6” electric submersible wastewater pump designed to provide clients with a robust solids handling solution and is capable of operating at heads of up to 27 metres. Delivering a maximum flow of 94 litres per second, the pump has been manufactured for use in a broad spectrum of environments that typically include municipal and utility applications. Each unit is fitted with a 20m cable enabling flexible installation, with an automatic control feature ensuring it will only operate when required.

XFP150G-CB1.3 Click image to Zoom

Key Features

  • Contrabloc Impeller provides blockage-free operation
  • Double mechanical seals for maximum abrasive resistance
  • Premium Efficiency IE3 motor for reduce energy consumption
  • Simple design allows minimal service and maintenance
  • Easily portable so can be positioned quickly
  • Motor protection reduces the risk of damage
  • Flexible configuration suitable for both wet & dry installations
  • No vibration allows smooth running and constant flows

Environments

  • Building and construction
  • Emergency
  • Municipal treatment sites
  • Wastewater pumping networks
  • Sewage
  • Manufacturing and industry
  • Industrial processes
  • Commercial drainage
  • Food preparation processes
  • Agriculture
  • Utility industries

Accessories

  • VARIABLE PANEL 18Kw – 56Kw
  • 6" 10FT W/A SUCTION HOSE BAUER
  • 6" W/A SUCTION HOSE X 6MTS
  • 6" 20FT POLYTUBE
  • 6" X 6M HELIFLEX HOSE BAUER
  • 6" 10FT STEEL PIPE
  • 6" 20FT STEEL PIPE
  • 6" 45* BAUER BEND
  • 6" 90* BEND
  • 6" GATEVALVE
  • 6" NON-RETURN VALVE
  • ROAD RAMP C/W 6" PN16 FLANGES
  • ROAD RAMP WIDE C/W 6" PN16 FLANGES
  • ROAD CROSSING C/W 8" PN16 FLANGES

Specifications

Model:-
XFP150G CB1.3
Motor type
415V
Motor rating
16kW
Max power input
17.4kW
Running current
33.1A
Discharge spigot
6"
Maximum solids
100mm
EX Rated
Yes
Cooling jacket
Yes
Dimensions (H x W)
Guide rail option Height
1300mm
Maximum Width
615mm
Minimum Width
495mm
Free standing Height
1470mm
Maximum Width
1000mm
Minimum Width
630mm
Weight
370kg
