SP20, SP30, SP50 and SP80 Submersible Sludge Pumps

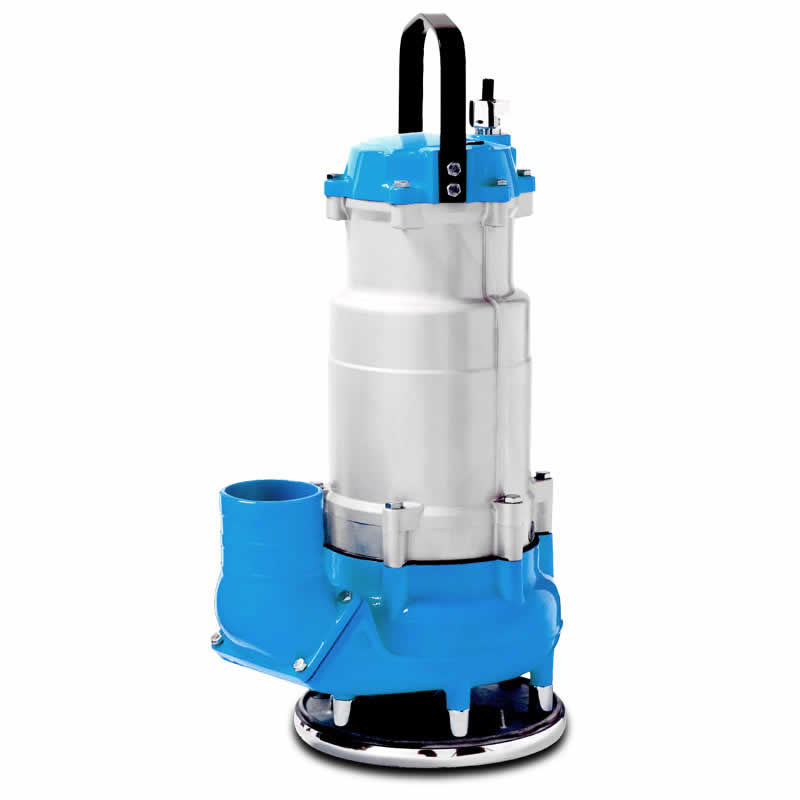

SP 20 Submersible Sludge Pump Click image to Zoom

The SP range of electric submersible sludge pumps has been designed to deliver impressive performances in instances where there is a need to pump fluids with a greater viscosity than water. Unlike larger units, our SP pumps are perfect for areas where space is limited because of their small dimensions and lightweight. Capable of producing flows of up to 28 litres per second and maximum heads of 33 metres, these units are regularly utilised when sumps need emptying or bypass pumping is required. Each unit is fitted with a 20m cable enabling flexible installation and can operate with an automatic stop/start feature ensuring the pumps only operate when necessary – reducing energy usage.

+971 (0) 55 104 8270 Get A Quote

Get A Quote

The SP range of electric submersible sludge pumps has been designed to deliver impressive performances in instances where there is a need to pump fluids with a greater viscosity than water. Unlike larger units, our SP pumps are perfect for areas where space is limited because of their small dimensions and lightweight. Capable of producing flows of up to 28 litres per second and maximum heads of 33 metres, these units are regularly utilised when sumps need emptying or bypass pumping is required. Each unit is fitted with a 20m cable enabling flexible installation and can operate with an automatic stop/start feature ensuring the pumps only operate when necessary – reducing energy usage.

SP 20 Submersible Sludge Pump Click image to Zoom

Key Features

  • Spiral-grooved plate and cutter provides blockage-free operation
  • Premium Efficiency IE3 motor for reduced energy consumption
  • Simple design allows minimal service and maintenance
  • No vibration allows smooth running and constant flows
  • Easily portable so can be positioned quickly
  • Motor protection reduces the risk of damage
  • Compact so fits small spaces
  • Simple installation for instantaneous set-up

Environments

  • Building site drainage and wastewater diversions
  • Effluent Control
  • Wastewater process systems
  • Clean and dirty water pumping
  • Tunnelling
  • Food, fruit and vegetable preparation processes
  • Power stations
  • Agriculture
  • Utility industries
  • Dirty and nuisance water pumping
  • Industrial processes

Accessories

  • PLC2000/SP50 LEVEL CONTROL
  • VARIABLE PANEL 1KW TO 15KW
  • 3" X 6M W/A SUCTION HOSE BAUER
  • 3" X 6M POLYTUBE
  • 3" X 6M HELIFLEX PVC BAUER HOSE
  • 3" 90* BEND
  • 3" GATEVALVE
  • 3" NON RETURN VALVE
  • ROAD RAMP C/W 6" PN16 FLANGES
  • PLC3000/SP80 LEVEL CONTROL
  • VARIABLE PANEL 1KW TO 15KW
  • 4" X 6M W/A SUCTION HOSE BAUER
  • 4" X 6M POLYTUBE
  • 4" X 6M HELIFLEX PVC BAUER
  • 4" X 6MTR STEEL BAUER PIPE
  • 4" 45* BAUER BEND
  • 4" 90* BEND
  • 4" GATEVALVE
  • 4" NON RETURN VALVE
  • ROAD RAMP C/W 6" PN16 FLANGES

Specifications

Model
SP20 / SP30SP50 / SP80
Motor type (V)
415 / 415415 / 415
Motor rating (kW)
1.3 / 3.35.2 / 8
Max power input (kW)
1.7 / 3.96.2 / 9.4
Running Current (Amps)
4.2 / 6.811 / 18
Max solids (mm)
40 / 6065 / 65
Discharge Spigot
3" Bauer / 3" Bauer3" Bauer / 4" Bauer
Dimensions H x W (mm)
700 x 320 / 700 x 320760 x 410 / 810 x 560
Weight (kg)
29 / 3452 / 67
