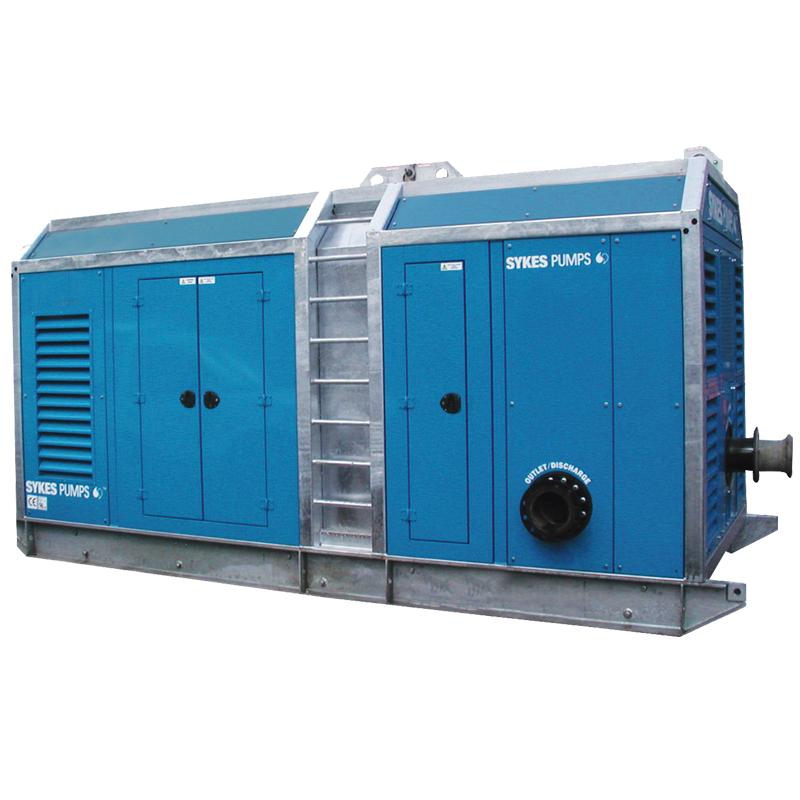

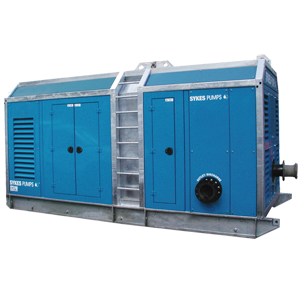

The UVO 200/150F (D90) silenced medium & high head pump is a contained hard iron unit designed for use in scenarios where high heads are required. This pump can operate at heads of up to 135 metres and deliver maximum flows of 375 litres per second, making it ideal for high capacity pumping applications. The UVO 200/150F (D90) silenced unit has built-in access points to simplify maintenance, while its high chrome iron alloy components provide sturdy resistance against abrasion and corrosion.
Key Features
- Hours of unattended operation for continuous use
- Hard-wearing parts for robust applications
- Automatic priming and re-priming for maximum efficiency
- Skid mounted unit
- Silenced unit for discreet operation
- Economical operation for greater fuel efficiency
- Simple to maintain
- 60 mm solids handling
Environments
- Clean and dirty water
- Pipeline filling
- Heavy Sludge
- Pipeline boosting
- Abrasive Slurry
- Hydraulic sluicing
- Pit dewatering
- Quarries
- Tailing deposits
- Open cast mines
- Slurry transfer
- Construction
- Ash handling
- Waste water
- Water boosting
Accessories
- 8" INTAKE
- 8" 3M W/A BAUER HOSE
- 8" FLANGED HIGH PRESSURE HOSE X 6MTS
- 8" 10FT STEEL PIPE
- 8" 20FT STEEL PIPE
- 8" FLANGED NP16 90* BEND
- 8" FLANGED NP16 GATEVALVE
- 8" NON RETURN VALVE
- RETAIL GAS OIL
- BUNDED FUEL TANK 3000 LITRE
- 5M HP FUEL LINE
- 8" INTAKE
- 8" 3M W/A BAUER HOSE
- 8" FLANGED HIGH PRESSURE HOSE X 6MTS
- 8" 10FT STEEL PIPE
- 8" 20FT STEEL PIPE
- 8" FLANGED NP16 90* BEND
- 8" FLANGED NP16 GATEVALVE
- 8" NON RETURN VALVE
- RETAIL GAS OIL
- BUNDED FUEL TANK 3000 LITRE
- 5M HP FUEL LINE
Specifications
- Performance
- Max head:- 135 m
Max flow:- 375 l/s
Max solid:- 60 mm - Weight
- 9600 kg
- Dimensions (L x W x H)
- 5400 x 2200 x 2570 mm
- Noise level
- @ 7m = 71 dBA
- Pipe connections
- Suction:- 8" Table D
Discharge:- 8" Table DOptional Bauer Couplings - Fuel Consumption
- Full load @ 1600 rpm:- 106 litres/hour
- Energy Efficient duty point
- Fuel Consumption @ 1500 rpm:- 92.5 litres/hour
