UVO 150/100E Medium & High Head

Click image to Zoom

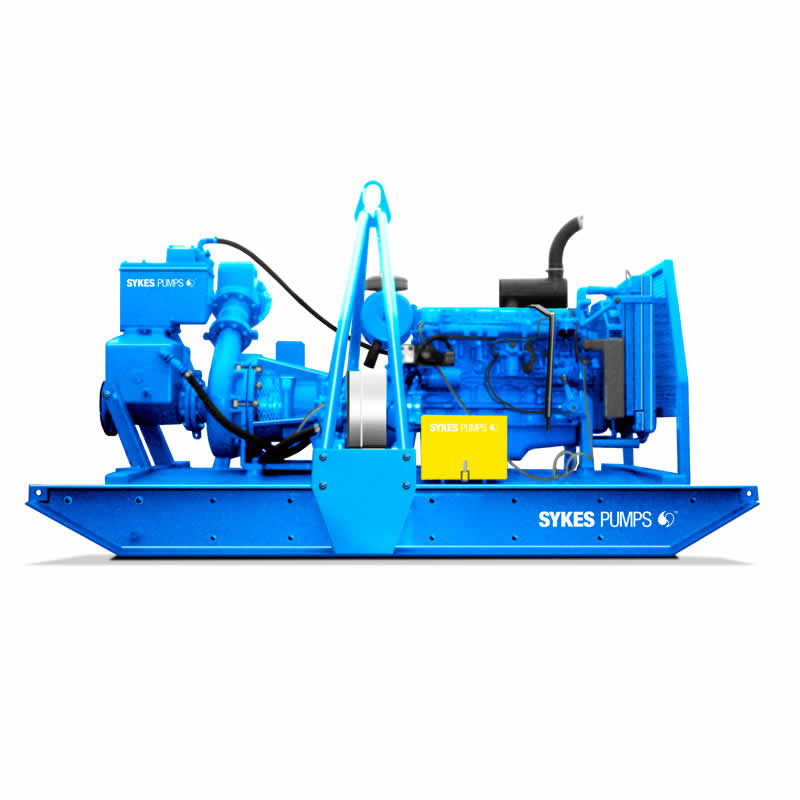

The UVO 150/100E is a hard iron pump specifically designed for the most arduous duties and has a unique combination of features that provide impressive performance, sustained high efficiency and total reliability. All wet end components are manufactured from a high chrome iron alloy to provide excellent abrasion and corrosion resistance. Producing a maximum head of 93 metres and flows of up to 120 litres per second, the UVO 150/100E is driven by an efficient diesel engine that meets all EU emission control standards.

+971 (0) 55 104 8270 Get A Quote

Download Spec Sheet

Get A Quote

Click image to Zoom

Key Features

Hours of unattended operation for continuous use
Hard-wearing parts for robust applications
Automatic priming and re-priming for maximum efficiency
Solids handling of up to 38 mm
Silenced option available
Electric start for swift functionality
Economical operation for greater fuel efficiency
Simple to maintain
Central and 4-point lifting

Environments

Quarries and mines
Environmental
Emergency pumping services
Docks, ports and harbours
Local authorities
Manufacture and industry
Power stations
Tunnelling
Refineries

Accessories

6" 10FT W/A SUCTION HOSE BAUER
6" W/A SUCTION HOSE X 6MTS
6" FLANGED HIGH PRESSURE HOSE X 6MTS
4" FLANGED HIGH PRESSURE HOSE X 6MTS
4" X 6MTR STEEL BAUER PIPE
4" FLANGED 90* BEND
4" GATEVALVE
4" NON RETURN VALVE
RETAIL GAS OIL
BUNDED FUEL TANK 3000 LITRE
5M HP FUEL LINE

Specifications

Performance: Max head:- 93 m
Max flow:- 120 l/s
Max solid:- 38 mm
Weight: 3750 kg with fuel
3400 kg without fuel
Dimensions (L x W x H): 3505 x 1608 x 1977 mm
Fuel capacity: Various integral fuel tanks
Pipe connections: Suction:- 6" Table D
Discharge:- 4" Table D Option Bauer Couplings
Fuel Consumption: Full load @ 1800 rpm:- 30 litres/hour
Energy Efficient duty point: Fuel Consumption @ 1500 rpm:- 18.6 litres/hour
