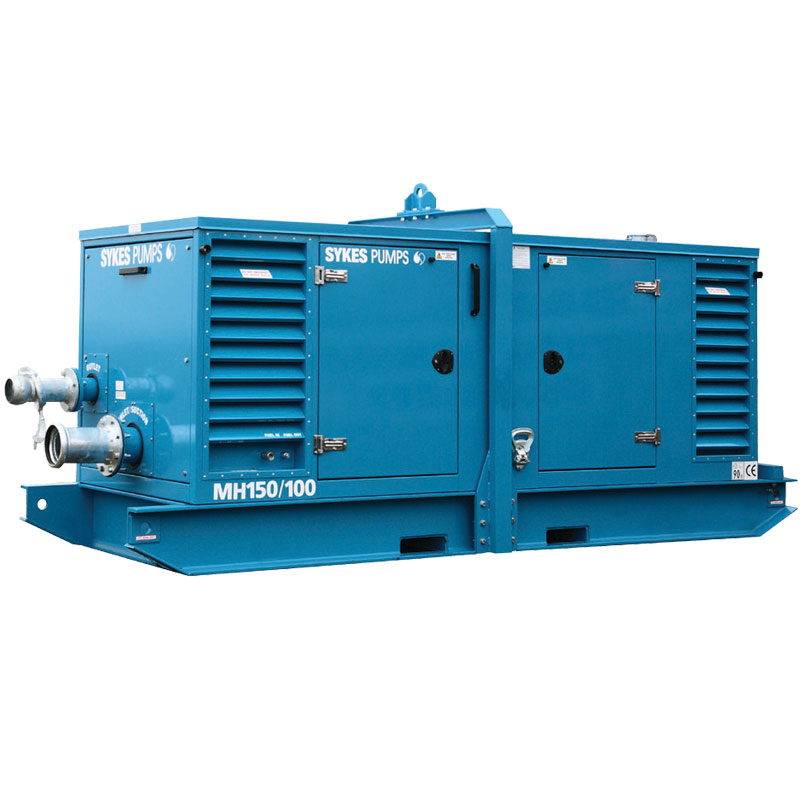

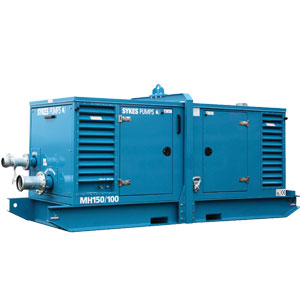

MH150/100 SUPER WISPASET Medium Head

Click image to Zoom

The MH150/100 SUPER WISPASET is designed for all general purpose medium head applications and is ideally suited for Open Cast Mining and Quarrying applications. The carefully designed high efficiency impeller gives excellent Head and Flow characteristics.

+971 (0) 55 104 8270 Get A Quote

Download Spec Sheet

Get A Quote

Click image to Zoom

Key Features

Hard wearing cast Iron parts
Hours of unattended operation
Corrosion resistant
Automatic priming and re-priming
Fuel efficient engine
Compact and manoeuvrable
Available as skid mounted
Electric start
Ease of maintenance
Solids handling up to 20 millimetres
Available as super silenced.

Environments

Environmental
Emergency Pumping Services
Docks, Ports and Harbours
Refineries
Water and Waste Treatment
Local Authorities
Film Production and Events
Offshore and Float Outs
Quarries and Mines
Building and Construction
Manufacture and Industry
Power Stations
Tunnelling
Agriculture

Accessories

4" X 3M W/A BAUER HOSE
4" 20FT W/A SUCTION HOSE BAUER
4" 20FT POLYTUBE
4" X 6MTR STEEL BAUER PIPE
4" 45* FLANGED NP16
4" 90*PLANGED NP16 BEND
4" GATEVALVE
4" NON RETURN VALVE
6" 10FT W/A SUCTION HOSE BAUER
6" W/A SUCTION HOSE X 6MTS
RETAIL GAS OIL
BUNDED FUEL TANK 3000 LITRE
5M HP FUEL LINE

Specifications

Performance: Max head:- 105 m
Max flow:- 90 l/s
Max solid:- 20 mm
Weight: 2905 kg
Dimensions (L x W x H): 4090 x 1370 x 1685 mm
Noise Level: @7m = 70 dBA
Pipe connections: Suction:- 6" Table D
Discharge:- 4" NP16
Bauer couplings option
Fuel Consumption: Full load @ 1800 rpm:- 26.5 litres/hour
Energy Efficient duty point: Fuel Consumption @ 1800 rpm:- 21.9 litres/hour
Sperate fuel tank required:
