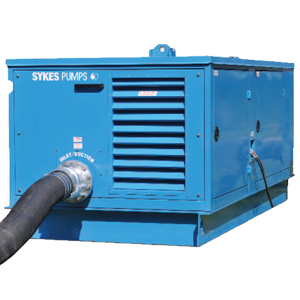

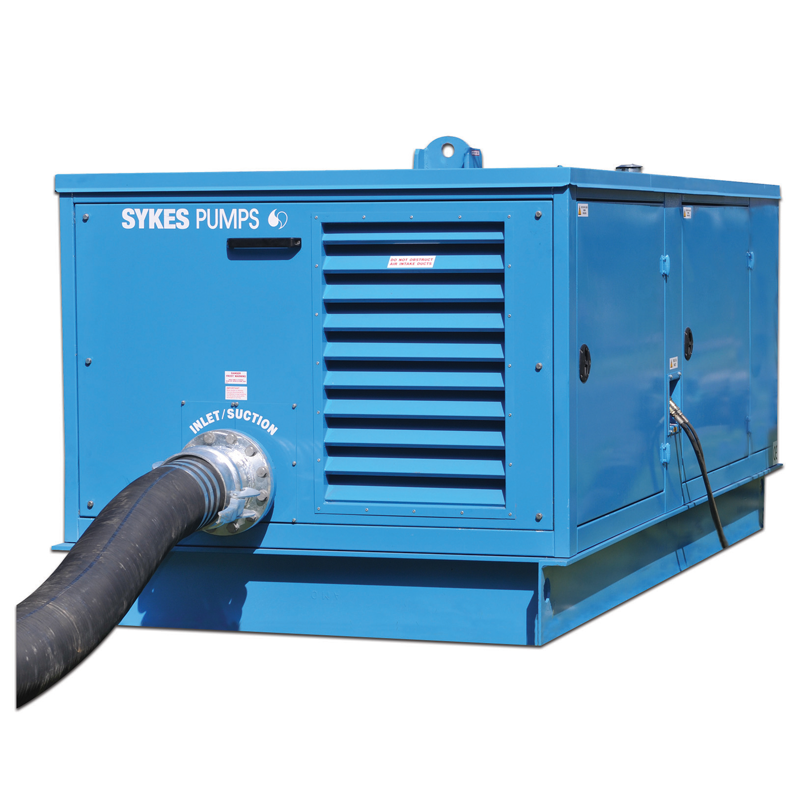

HS200

Click image to Zoom

The HS200 is a medium to high head solids handling pump, ideally suited for the wastewater industry, the pumpset is fully silenced and features automatic stop/start technology.

The highly efficient screw type impeller ensures optimum efficiency where the need to pump heavy rag and sludge, either over long distances or where higher than normal heads is required.

+971 (0) 55 104 8270 Get A Quote

Download Spec Sheet

Get A Quote

The HS200 is a medium to high head solids handling pump, ideally suited for the wastewater industry, the pumpset is fully silenced and features automatic stop/start technology.

The highly efficient screw type impeller ensures optimum efficiency where the need to pump heavy rag and sludge, either over long distances or where higher than normal heads is required.

Click image to Zoom

Key Features

Hard wearing cast Iron parts
Hours of unattended operation
Corrosion resistant
Automatic priming and re-priming
Fuel efficient engine
Adjustable wear liners Hi- Chrome
Mechanical Seal
Compact and manoeuvrable
Available as skid mounted
Electric start
Ease of maintenance
Solids handling up to 95 millimetres
Available as super silenced.

Environments

Environmental
Water and Waste Treatment
Local Authorities
Manufacture and Industry
Agriculture

Accessories

8" INTAKE
8" 3M W/A BAUER HOSE
8" X 6M POLYTUBE BAUER DELIVERY
8" FLANGED HIGH PRESSURE HOSE X 6MTS
8" 20FT STEEL PIPE
8" 45* BAUER BEND
8" 90* BEND
8" GATEVALVE
8" NON RETURN VALVE
ROAD CROSSING C/W 8" PN16 FLANGES
BUNDED FUEL TANK 2800 LITRE
BUNDED FUEL TANK 3000 LITRE
BUNDED FUEL TANK 3000 LITRE
5M HP FUEL LINE
RETAIL GAS OIL

Specifications

Performance: Max head:- 55m
Max flow:- 190 l/s
Max solid:- 95 mm
Weight: 3500 kg
Dimensions (L x W x H): 3640 x 1750 x 1740 mm
Noise level: @7m = 70 dBA
Pipe connections: Suction flange:- 8" Table D
Discharge flange:- 8" Table D
Optional Bauer Couplings
Fuel Consumption: Full load @ 1200 rpm:- 20.47 litres/hour
Energy Efficient duty point: Fuel Consumption @ 1200 rpm:- 14 litres/hour
Separate Fuel Tank Required
