Home Pump Hire & Dewatering High Performance HP100

HP100

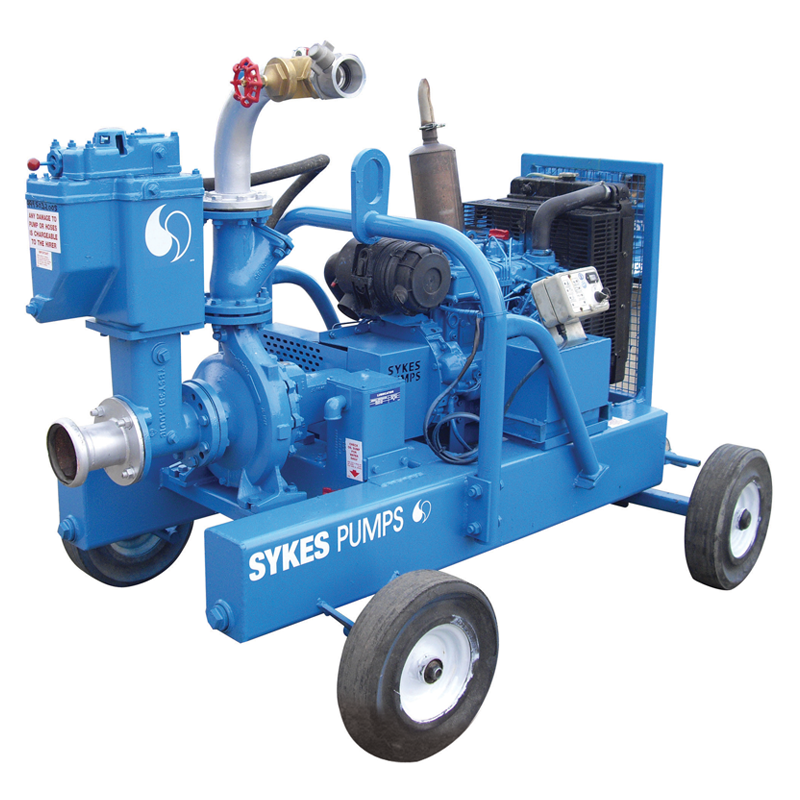

HP100 Pump Click image to Zoom

The HP100 is a high performance pump designed for a range of applications including jetting, dust suppression and temporary fire pump duties. Ideal for scenarios where standard pump pressures are inadequate, this unit can deliver heads up to 98 metres and maximum flows of 44 litres per second. This 4” jetting pump has a built-in fuel tank with a 122-litre capacity, allowing it to run for 24 hours before requiring refuelling. Incorporating the Sykes Univac priming system, the HP100 utilises a 25 cfm rotary vacuum pump allowing automatic priming and re-priming from dry.

+971 (0) 55 104 8270 Get A Quote

Get A Quote

The HP100 is a high performance pump designed for a range of applications including jetting, dust suppression and temporary fire pump duties. Ideal for scenarios where standard pump pressures are inadequate, this unit can deliver heads up to 98 metres and maximum flows of 44 litres per second. This 4” jetting pump has a built-in fuel tank with a 122-litre capacity, allowing it to run for 24 hours before requiring refuelling. Incorporating the Sykes Univac priming system, the HP100 utilises a 25 cfm rotary vacuum pump allowing automatic priming and re-priming from dry.

HP100 Pump Click image to Zoom

Key Features

  • Hours of unattended operation for continuous use
  • Hard-wearing parts for robust applications
  • Automatic priming and re-priming for maximum efficiency
  • Compact and manoeuvrable for simple redeployment
  • Super silent skid option available
  • Electric start for swift functionality
  • Economical operation for greater fuel efficiency
  • Available on a 4 wheeled site chassis for swift delivery

Environments

  • Environmental
  • Emergency pumping services
  • Docks, ports and harbours
  • Refineries
  • Water and waste treatment
  • Local authorities
  • Film production and events
  • Offshore and float outs
  • Quarries and mines
  • Building and construction
  • Manufacture and industry
  • Power stations
  • Tunnelling
  • Agriculture

Accessories

  • 2.5 INCH X 60FT JETTING HOSE
  • JETTING STRAINER
  • 4" X 3M W/A BAUER HOSE
  • 4" 20FT W/A SUCTION HOSE BAUER
  • 4" 20FT POLYTUBE
  • 4" X 6MTR STEEL BAUER PIPE
  • DRIP TRAY 2440MM X 1525MM
  • DRIP TRAY 2058MM X 1525MM
  • RETAIL GAS OIL
  • BUNDED FUEL TANK 1000 LITRE
  • BUNDED FUEL TANK 2000 LITRE
  • BUNDED FUEL TANK 3000 LITRE

Specifications

Performance
Max head:- 98 m
Max flow:- 44 l/s
Weight
1004 kg with fuel
907 kg without fuel
Dimensions (L x W x H)
1940 x 1450 x 1530 MM
Noise level
@ 7m = 77 - 82 dBA
Fuel capacity
122 litres
Pipe connections
Suction:- 4" Table D or 4" Bauer
Discharge:- 2 1/2" Instantaneous adapter or (3" Bsp)
Fuel Consumption
Full load @ 2800 rpm:- 10.8 litres/hour
Energy Efficient duty point
Fuel Consumption @ 2500 rpm:- 7.7 litres/hour
