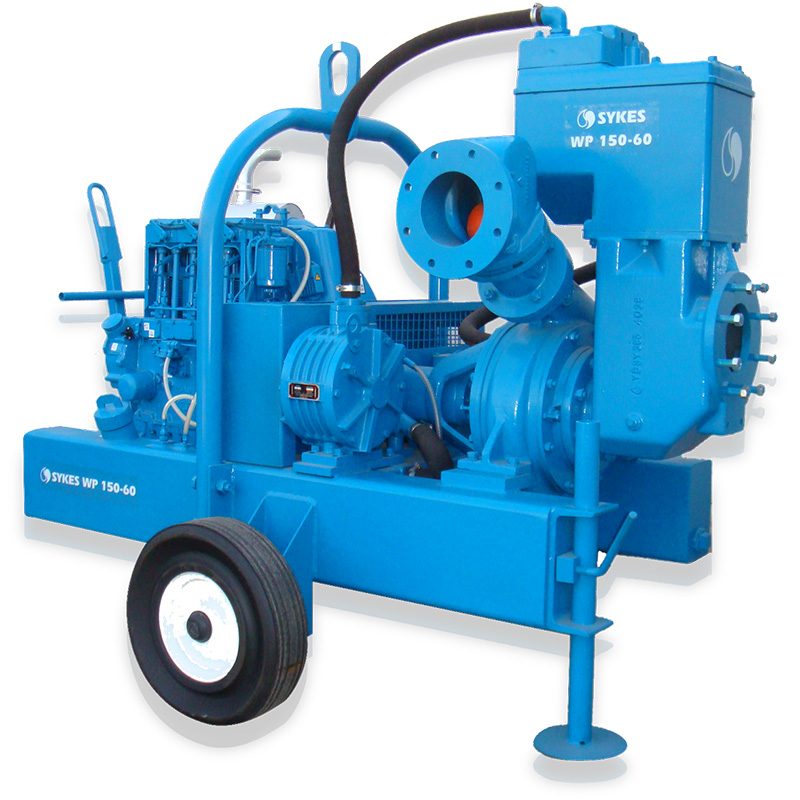

WP 150/60 Dewatering Pump

The WP150/60 is a specifically designed pumpset to handle clean or dirty water containing limited solids, used extensively on construction sites for dewatering, by oil companies, municipalities and utilities, and for marine and agricultural applications. The WP150/60 incorporates the unique Sykes Univac high flow automatic vacuum system. This enables the pump to prime and re-prime fully automatically, allowing for fast drawdown and excellent air handling characteristics enabling the pumpset to maintain constant vacuum when used on wellpoint systems..

Key Features

Feature

Hard wearing cast

Iron parts

Easy to tow

Corrosion resistant

Hours of unattended

operation

Available as a

four wheeled trailer

Automatic priming and re

priming

Available as skid

mounted

Compact and manoeuvrable

Available as a

high speed road trailer

Choice of engines

Easy maintenance

Electric motor option

Product Specification

Weight (kg) : 1230 kg with fuel / 1133 kg without fuel
Dimension (mm) : 2100x1500x1635, typical length including tow bar 2780mm
Noise level : Typical noise level at 1m = 94 – 98 dBA,Typical noise level at 7m = 77 – 82 dBA
Performance : Max head
Fuel Tank Capacity : 122 litres. Max 24 hour with cleaning and flushing facilities
Fuel Consumption : Typical fuel consumption on full load @ 1800 rpm
Chassis : 4 wheel site trailer / high speed trailer/ Skid mounted/ Skid mounted C/w Roll cage
Pump Materials : Main pump
Pipe Connections : Suction
Engine : Kirloskar HA394 air cooled diesel engine developing 30kw at 1800 rpm
Prime System : Flood Lubricated Rotary Vacuum Pump/ Nominal Displacement 60 cfm/ Non Return Valve
Shaft Seal : Sykes patented vacuum pressure seal, Single ring of packing, Spring loaded, No adjustments necessary, Easy repacking, Chrome oxide coating on wear ring, Optional mechanical seal
Health and Safety : Ear Defenders, Gloves, Boots, safety footwear, Protective clothing, Noise power level Lwa

Downloads

Accessories

6″ SPLIT INTAKE
6″ 10FT W/A SUCTION HOSE BAUER
6″ W/A SUCTION HOSE X 6MTS
6″ 20FT POLYTUBE
6″ X 6M HELIFLEX HOSE BAUER
6″ LAYFLAT HOSE PER METRE
6″ BLUE LAYFLAT X 25M CW BAUERS
6″ 10FT STEEL PIPE
6″ 20FT STEEL PIPE
6″ 45* BAUER BEND
6″ 90* BEND
6″ GATEVALVE
6″ NON RETURN VALVE
SETTLEMENT TANK
SYKES SILT AWAY
DRIP TRAY 2440MM X 1525MM
DRIP TRAY 2058MM X 1525MM
ROAD RAMP C/W 6″ PN16 FLANGES
ROAD RAMP WIDE C/W 6″ PN16 FLANGES
ROAD CROSSING C/W 8″ PN16 FLANGES
BUNDED FUEL TANK 2800 LITRE
BUNDED FUEL TANK 3000 LITRE
BUNDED FUEL TANK 3000 LITRE
5M HP FUEL LINE
RETAIL GAS OIL

Environments

Clean and dirty water
Site dewatering
Heaviest Sludge
Quarries
Heaviest Slurry
Waste water
Over pumping
