Home Pump Hire & Dewatering GP 100M
Immediate Despatch

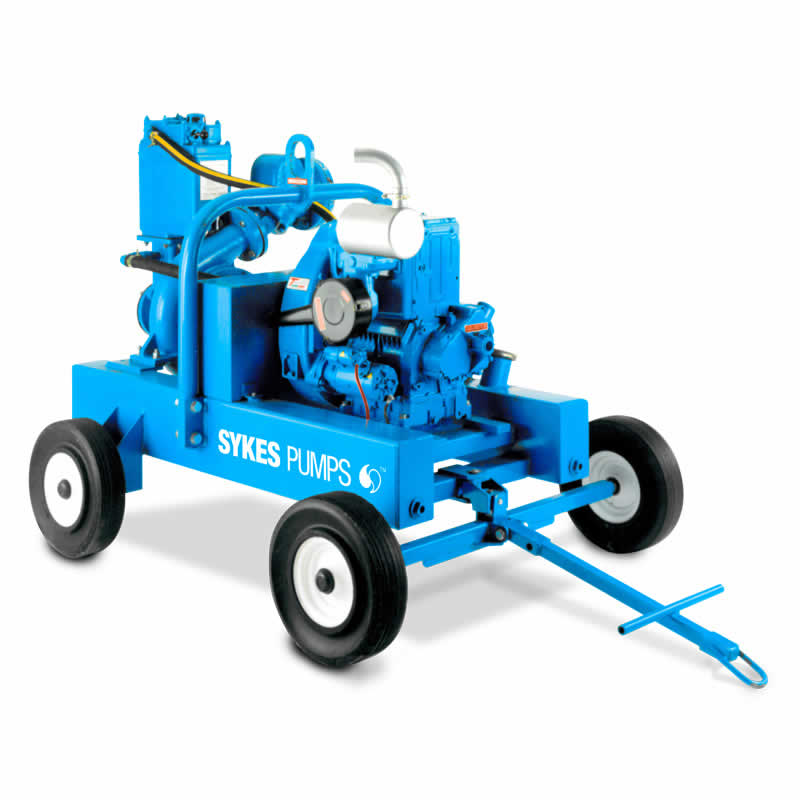

GP 100M General Purpose Pump

gp 100M angle Click image to Zoom

The GP 100M is among the most popular general purpose pumps in the hire industry and is a medium-sized unit suitable for a wide range of applications. It’s 4 wheeled site chassis aids manoeuvrability and simplifies deployment, making it perfect for construction, utilities, civil engineering and over-pumping projects. Capable of priming and re-priming automatically from dry, the GP100M can deliver flows of up to 45 litres per second and a maximum head of 31 metres, despite its modest fuel consumption.

+971 (0) 55 104 8270 Get A Quote

Get A Quote

The GP 100M is among the most popular general purpose pumps in the hire industry and is a medium-sized unit suitable for a wide range of applications. It’s 4 wheeled site chassis aids manoeuvrability and simplifies deployment, making it perfect for construction, utilities, civil engineering and over-pumping projects. Capable of priming and re-priming automatically from dry, the GP100M can deliver flows of up to 45 litres per second and a maximum head of 31 metres, despite its modest fuel consumption.

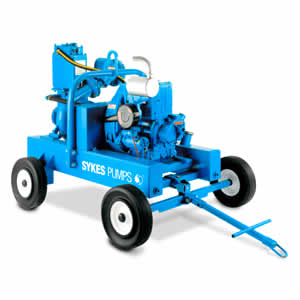

gp 100M angle Click image to Zoom

Key Features

  • Hours of unattended operation for continuous use
  • Hard-wearing parts for robust applications
  • Automatic priming and re-priming for maximum efficiency
  • Compact and manoeuvrable for simple redeployment
  • 44 mm solids handling capability
  • Electric start for swift functionality
  • Economical operation for greater fuel efficiency
  • Available on a high speed road trailer

Environments

  • Environmental
  • Emergency Pumping Services
  • Docks, Ports and Harbours
  • Refineries
  • Water and Waste Treatment
  • Local Authorities
  • Over-pumping
  • Offshore and Float Outs
  • Quarries and Mines
  • Building and Construction
  • Manufacture and Industry
  • Power Stations
  • Tunnelling
  • Construction projects

Accessories

  • 4" SPLIT INTAKE
  • 4" X 3M W/A BAUER HOSE
  • 4" 20FT W/A SUCTION HOSE BAUER
  • 4" 20FT POLYTUBE
  • 4" X 6M HELIFLEX PVC BAUER
  • 4" LAYFLAT HOSE PER METRE
  • 4" BLUE LAYFLAT X 25M CW BAUERS
  • 4" X 6MTR STEEL BAUER PIPE
  • 4" 45* BAUER BEND
  • 4" 90* BEND
  • 4" GATEVALVE
  • 4" NON RETURN VALVE
  • SETTLEMENT TANK
  • SYKES SILT AWAY
  • DRIP TRAY 2440MM X 1525MM
  • DRIP TRAY 2058MM X 1525MM
  • ROAD RAMP C/W 6" PN16 FLANGES
  • ROAD RAMP WIDE C/W 6" PN16 FLANGES
  • ROAD CROSSING C/W 8" PN16 FLANGES
  • RETAIL GAS OIL
  • BUNDED FUEL TANK 1000 LITRE
  • BUNDED FUEL TANK 2000 LITRE
  • BUNDED FUEL TANK 2800 LITRE
  • BUNDED FUEL TANK 3000 LITRE
  • 5M HP FUEL LINE

Specifications

Performance
Max head:- 31 m
Max flow:- 45 l/s
Max solid:- 44 mm
Weight
1011 kg with fuel
907 kg without fuel
Dimensions (L x W x H)
1940 x 1450 x 1500 mm
Typical length with tow bar 2620
Noise level
@ 1m = 94 - 98 dBA
@7m = 77 - 82 dBA
Fuel capacity
69 - 122 litres. Max 24 hours with cleaning and flushing facilities
Pipe connections
Suction:- 4" table D
Discharge:- 4" table D "
Bauer couplings option:- 4
Fuel Consumption
Full load @ 1800 rpm:- 3.7 litres/hour
Energy Efficient duty point
Fuel Consumption @ 1500 rpm:- 2.29 litres/hour
