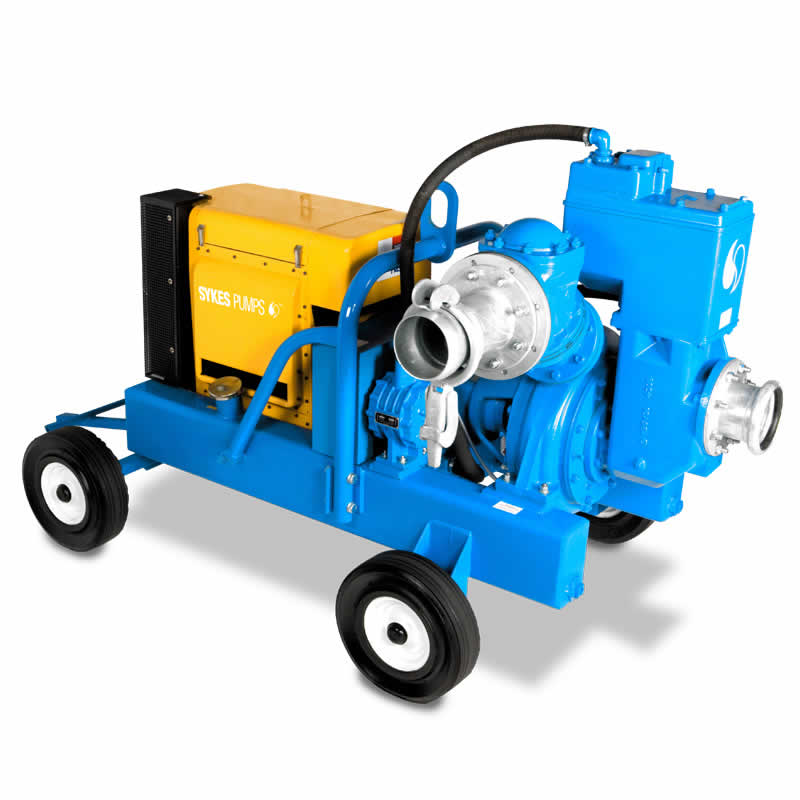

GP 100M HATZ Silenced Pump

The GP 100M HATZ is the go-to unit for clients requiring a general purpose pump with Wispaset characteristics. It’s proven denoised engine allows inconspicuous deployment in applications where noise may be an issue. Featuring a canopied engine, the GP 100M HATZ can operate at heads of up to 31 metres and deliver flows of up to 45 litres per second. Popular with contractors and utilities companies, this unit features the Sykes Univac vacuum system that can prime and re-prime automatically to maximise efficiency.

Key Features

Feature

Silenced engine for

reduced noise output

Hard

wearing parts for robust applications

Automatic priming and re

priming for maximum efficiency

Compact and manoeuvrable

for simple redeployment

44 mm solids

handling

Electric start for

swift functionality

Economical operation for

greater fuel efficiency

Hours of unattended

operation for continuous use

Product Specification

Performance : Max head
Weight : 1103 kg with fuel
998 kg without fuel
Dimensions (L x W x H) : 1940 x 1450 x 1500 mm
Typical length with tow bar 2620
Noise level : @ 1m = 90 – 94 dBA
@ 7m = 73 – 77 dBA
Fuel capacity : 69 – 122 litres. Max 24 hour with cleaning and flushing facilities
Pipe connections : Suction
Fuel Consumption : Full load @ 1800 rpm
Energy Efficient duty point : Fuel Consumption @ 1500 rpm

Downloads

Accessories

4″ SPLIT INTAKE
4″ X 3M W/A BAUER HOSE
4″ 20FT W/A SUCTION HOSE BAUER
4″ 20FT POLYTUBE
4″ X 6M HELIFLEX PVC BAUER
4″ LAYFLAT HOSE PER METRE
4″ BLUE LAYFLAT X 25M CW BAUERS
4″ X 6MTR STEEL BAUER PIPE
4″ 45* BAUER BEND
4″ 90* BEND
4″ GATEVALVE
4″ NON RETURN VALVE
SETTLEMENT TANK
SYKES SILT AWAY
DRIP TRAY 2440MM X 1525MM
DRIP TRAY 2058MM X 1525MM
ROAD RAMP C/W 6″ PN16 FLANGES
ROAD RAMP WIDE C/W 6″ PN16 FLANGES
ROAD CROSSING C/W 8″ PN16 FLANGES
BUNDED FUEL TANK 1000 LITRE
BUNDED FUEL TANK 2000 LITRE
BUNDED FUEL TANK 2800 LITRE
BUNDED FUEL TANK 3000 LITRE
RETAIL GAS OIL
